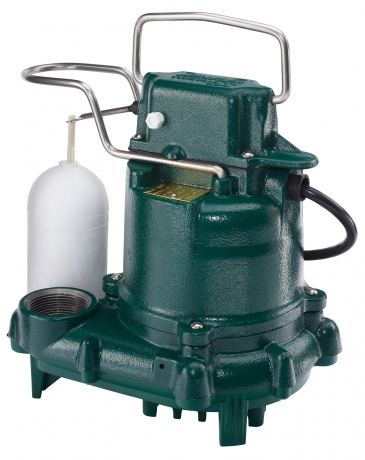

Zoeller 53-0016 115V 0.3 HP 50 Series Sump Cast Iron Pump with 25 ft. Cord

MSRP: $336.38
$258.75
Availability: In stock
SKU: HMW608279
Manufacturer: Zoeller
Features
  • Float-operated, submersible, 2-pole mechanical switch and variable level
  • Corrosion-resistant, powder-coated epoxy finish
  • No sheet metal parts to rust or corrode
  • Stainless steel screws, switch arm, guard, and handle
  • No screens to clog
  • Watertight, neoprene square ring between motor and pump housing
  • Solid, buoyant, polypropylene float
  • Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
  • Upper and lower sleeve Bearings running in bath of oil
  • Entire unit pressure-tested after assembly
  • Carbon and Ceramic shaft seal
  • Maximum temperature for effluent or dewatering: 130 deg F (54 deg C)
  • Passes 1/2" (13 mm) spherical solids
  • 1-1/2" NPT discharge
  • On point: 7-1/4" (18 cm)
  • Off Point: 3" (8 cm)
  • Major width: 10-3/32" (26.2 cm)
  • Major Height: 10-1/16" (25.6 cm)
  • Watertight and dust-tight
Specifications
  • Motor: 3/10 HP
  • Voltage: 115 or 230 V
  • Phase: 1 Ph
  • Hertz: 60 Hz
  • RPM: 1550 RPM
  • Type: Shaded pole
  • Insulation: Class B
  • Amps: 4.8 - 9.7 Amps
  • Operation: Automatic or nonautomatic
  • Auto On / Off Points: 7-1/4" / 3" (18.4 cm / 7.6 cm)
  • Discharge Size: 1-1/2" NPT
  • Solids Handling: 1/2" (12 mm) spherical solids
  • Cord Length: 9' (3 m) auto, 15' (5 m) nonauto
  • Cord Type: UL listed, 3-wire cord and plug
  • Max Head: 19.25' (5.9 m)
  • Max Flow Rate: 43 GPM (163 LPM)
  • Max Operating Temperature: 130 °F (54 °C)
  • Cooling: Oil filled
  • Motor Protection: Auto reset thermal overload
  • Cap: Cast Iron or bronze
  • Motor Housing: Cast Iron or bronze
  • Pump Housing: Cast Iron or bronze
  • Base: Cast Iron, bronze or engineered thermoplastic
  • Upper Bearing: Sleeve Bearing
  • Lower Bearing: Sleeve Bearing
  • Mechanical Seals: Carbon and Ceramic
  • Impeller Type: Non-clogging vortex
  • Impeller: Plastic, Cast Iron or bronze
  • Hardware: Stainless steel
  • Motor Shaft: AISI 1215 cold roll steel
Products specifications
Attribute name Attribute value
MPN 53-0016
